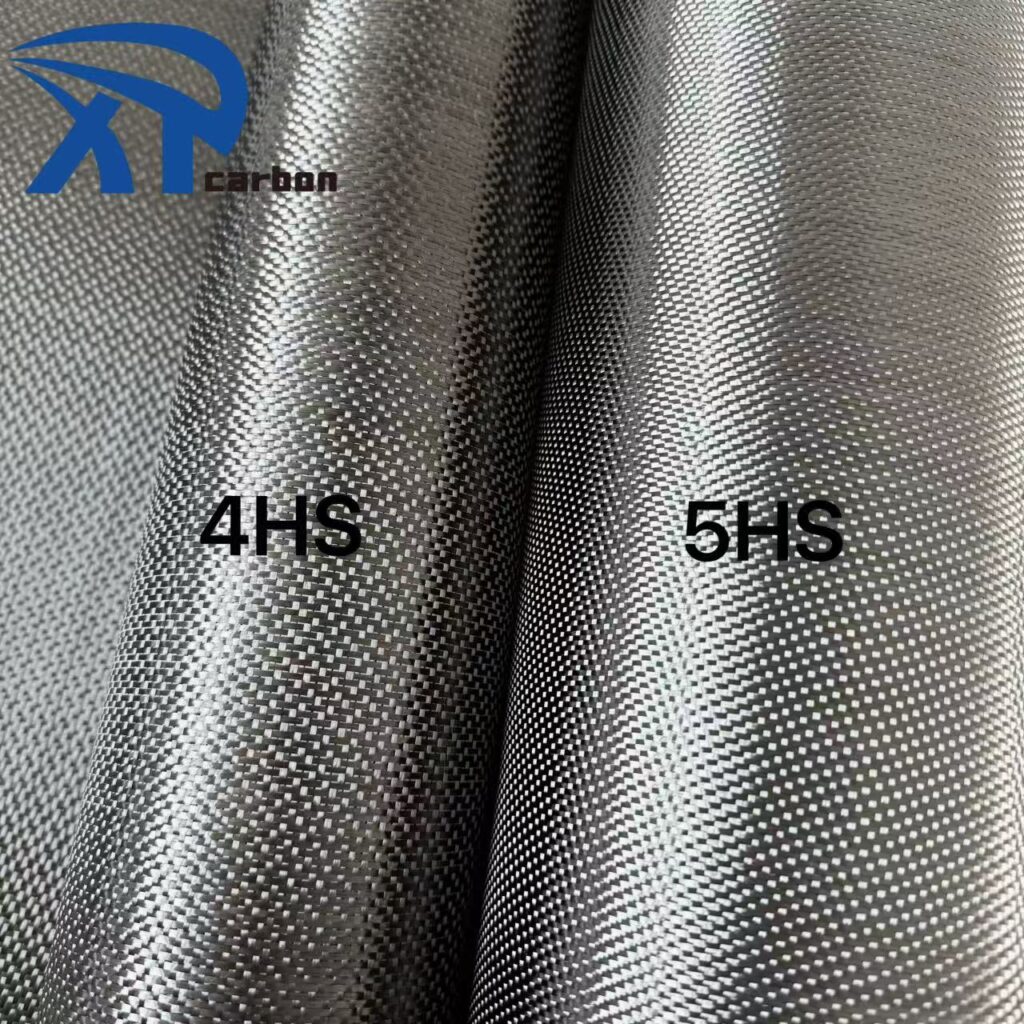

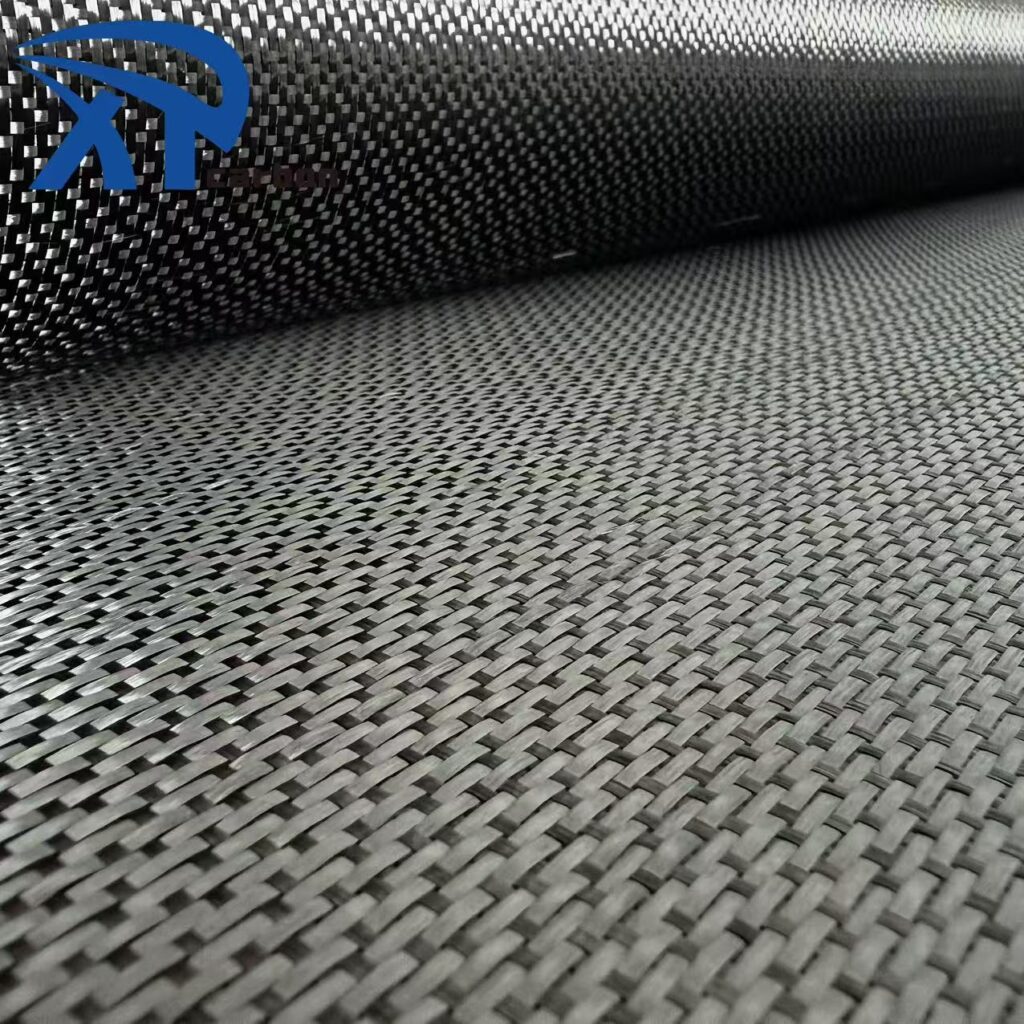

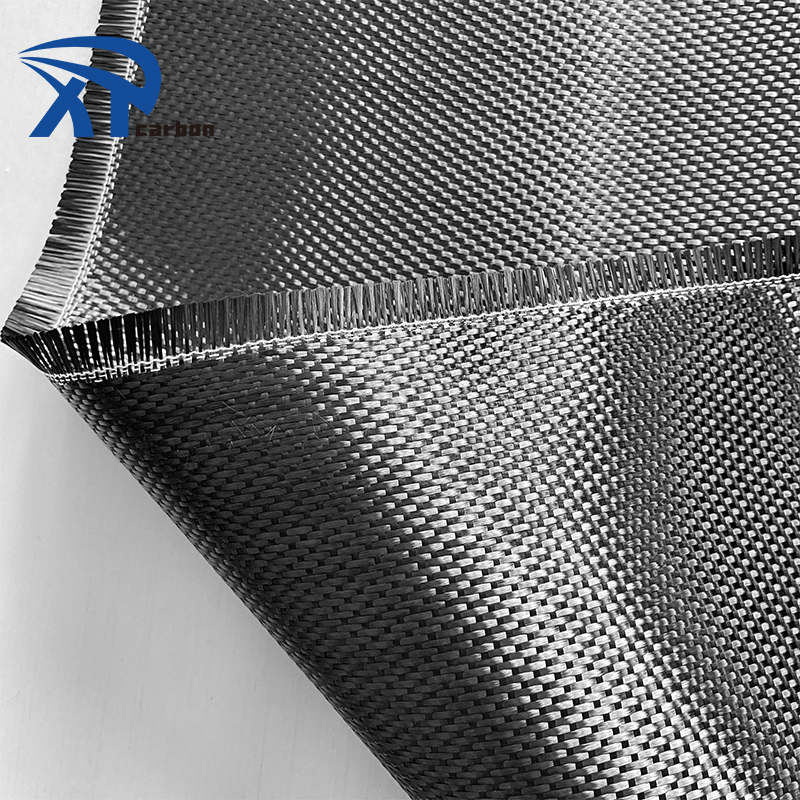

Satin Carbon Fiber Fabric
Satin Carbon Fiber Fabric is a premium composite material that combines strength, durability, and an elegant finish. Produced with high-quality carbon fiber yarns and satin weave techniques, it offers a smooth surface, lightweight performance, excellent rigidity, and strong resistance to heat and corrosion. Compared to plain or twill weaves, satin carbon fiber fabric provides a more refined decorative appearance, making it ideal for automotive interiors, aerospace components, marine applications, sporting goods, luxury luggage, and consumer electronics.
Yarn type：1K,3K,6K,12K
Pattern：Stain
Brand：Star Carbon
Width：1000mm/1270mm/1500mm/Support customization
HS code：68151200
Application field
Aerospace
Automotive industry
Construction engineering
New energy and industry
Sports equipment
Electronics and medical care
National defense and military industry
Advantage
High strength
High modulus
Light weight
Corrosion resistance
High-temperature resistance
Electrical and thermal conductivity
designability and process adaptability
Fatigue resistance
Video
Specification
| Model | Surface | Weight/gsm | Thickness/mm | Density |
|---|---|---|---|---|
| XT-H01P-50 | Plain | 50 | 0.07 | 4.5*4.5 |
| XT-H01P-90 | Plain | 90 | 0.1 | 6.5*6 |
| XT-H01P-100 | Plain | 100 | 0.11 | 7.5*7.5 |
| XT-H01T-100 | Twill | 100 | 0.11 | 7.5*7.5 |
| XT-H01P-120 | Plain | 120 | 0.14 | 9*9 |
| XT-H01T-120 | Twill | 120 | 0.14 | 9*9 |
| XT-H01.5P-140 | Plain | 140 | 0.15 | 7.2*7.2 |
| XT-H03P-160 | Plain | 160 | 0.26 | 4*4 |
| XT-H03P-200 | Plain | 200 | 0.3 | 5*5 |
| XT-H03T-200 | Twill | 200 | 0.3 | 5*5 |
| XT-H03P-220 | Plain | 220 | 0.31 | 5.5*5.5 |
| XT-H03T-220 | Twill | 220 | 0.31 | 5.5*5.5 |
| XT-H03P-240 | Plain | 240 | 0.32 | 6*6 |
| XT-H03T-240 | Twill | 240 | 0.32 | 6*6 |
| XT-H03P-280 | Plain | 280 | 0.34 | 7*7 |
| XT-H03T-280 | Twill | 280 | 0.34 | 7*7 |
| XT-H03T-300 | Twill | 300 | 0.36 | 7.5*7.5 |
| XT-H06P-320 | Plain | 320 | 0.38 | 4*4 |
| XT-H06T-320 | Twill | 320 | 0.38 | 4*4 |
| XT-H06P-400 | Plain | 400 | 0.42 | 5*5 |
| XT-H06P-400 | Twill | 400 | 0.42 | 5*5 |
| XT-H012P-400 | Plain | 400 | 0.46 | 2.5*2.5 |
| XT-H012T-400 | Twill | 400 | 0.46 | 2.5*2.5 |
| XT-H012P-480 | Plain | 480 | 0.52 | 3*3 |
| XT-H012T-480 | Twill | 480 | 0.52 | 3*3 |
| XT-H012P-600 | Plain | 600 | 0.62 | 3.5*3.5 |
| XT-H012T-600 | Twill | 600 | 0.62 | 3.5*3.5 |
FAQ
1. Who are we?
A: We are based in Jiangsu, China, start from 2009,sell to Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment
3.What can you buy from us?
A: Carbon fiber tube,carbon fiber sheet,carbon fiber board,Aramid fiber fabric,aramid carbon mixed fabric
4. Why should you buy from us not from other suppliers?
A:Yixing Star Carbon Composite Materials Co., LTD is located in the economically developed, the company has strong technical force, sophisticated equipment, complete means of testing, raw materials and products of high quality.
5. Can I have a sample?
A: We welcome customers to take samples and check the quality and accept mixed samples.
6. How long is the delivery time?
A: The sample is usually 1-5 days, and the mass production time is 7-15 days.
7. Do you provide OEM services?
A: Yes, we can process it by simply providing you with a CAD drawing.
8. Does your product have the minimum order quantity?
A: Depending on the product, one piece is usually accepted.
9. Can I visit the factory?
A: Very welcome! Our factory is located in Jiangsu Province and we will lead you to visit our factory.
